Transparent Door for Electrical Panel 15 Modules 600x780mm PrismaSeT G IP40

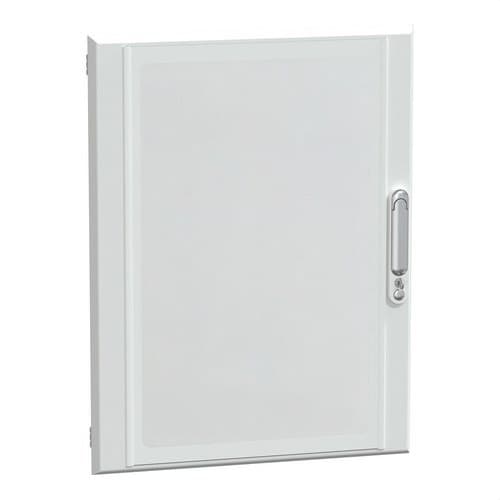

The Schneider Electric PrismaSeT G LVS08135 transparent door is a front accessory for PrismaSeT G enclosures 600 mm wide and 780 mm high, corresponding to configurations of 15 vertical modules of 50 mm. Its transparent front allows the equipment installed inside the panel to be viewed while keeping the enclosure closed. Once installed in the configuration specified by Schneider Electric, it provides an IP40 protection rating. It includes reversible opening up to 130°, handle, lock with 405 key, and two hinges.

The LVS08135 reference belongs to the low-voltage electrical panel system PrismaSeT G and is designed for wall-mounted enclosures and extension enclosures 600 mm wide. Its treated steel frame with white RAL 9003 finish, matte and textured surface, and transparent glass area combines mechanical protection with visibility of the installed equipment.

Transparent door for PrismaSeT G panels

The LVS08135 is specifically designed to be part of Schneider Electric PrismaSeT G electrical panels. It is not a complete enclosure, but a front door compatible with PrismaSeT G cubicles and extensions 600 mm wide.

• Range: PrismaSeT.
• Family: PrismaSeT G.
• Component type: transparent front door.
• Compatibility: PrismaSeT G enclosures.
• Compatible enclosure width: 600 mm.
• Configuration: 15 vertical modules of 50 mm.

15 vertical modules of 50 mm

The 15-module indication refers to the vertical modular system specific to PrismaSeT G, in which each module equals 50 mm in height.

Therefore, this feature should not be confused with the DIN module capacity of 18 mm commonly used for miniature circuit breakers and other modular devices.

• Number of vertical modules: 15.
• Height of each vertical module: 50 mm.
• Total door height: 780 mm.

600 x 780 mm dimensions

The door has dimensions adapted to the corresponding PrismaSeT G cubicles:

• Width: 600 mm.
• Height: 780 mm.
• Depth: 36 mm.
• Net weight: approximately 5.52 kg.

These dimensions correspond to the door itself and should be checked together with the reference of the PrismaSeT G cubicle or extension where it will be installed.

Transparent front for visual inspection

The transparent area allows the devices and indicators inside the panel to be observed without opening the door, making inspection and maintenance easier.

This feature is especially practical when the interior includes equipment with:

• Status indicators.
• Displays.
• Mechanical signaling.
• Instrumentation.
• Measuring equipment.
• Switchgear whose operating position must be visually checked.

IP40 with the door installed

Schneider Electric specifies different protection ratings for the PrismaSeT G system depending on its configuration:

• IP30: enclosure without door.
• IP40: enclosure with this door installed.
• IP41: assembly with door and top cover or canopy.
• IP43: assembly with door, canopy, and corresponding IP43 gasket.

Therefore, the IP40 rating associated with the LVS08135 refers to the protection level achieved by the PrismaSeT G enclosure correctly configured with the door. The door alone does not constitute a complete electrical enclosure.

IK08 mechanical strength

The configuration provides IK08 impact resistance in accordance with EN/IEC 62262.

This classification provides additional mechanical protection for the equipment installed inside the panel and is suitable for professional environments where accidental impacts on the enclosure may occur.

Reversible left or right opening

The door can be configured with a reversible opening direction, allowing the installation to be adapted to the space available around the panel.

• Opening: left or right.
• Maximum opening angle: 130°.
• Number of hinges supplied: 2.

Reversibility makes installation easier in technical rooms, corridors, and spaces where the opening direction may be limited by nearby equipment or walls.

Handle and lock with 405 key included

Schneider Electric supplies the LVS08135 with the basic elements needed to close the door:

• Transparent door.
• Handle.
• Lock with 405 key.
• 2 hinges.

The technical datasheet also includes the possibility of using other compatible locking systems and inserts, which must be ordered separately.

Two locking points

The door has 2 locks, helping maintain uniform closure on the enclosure and preserve the intended performance of the assembly.

Treated steel frame and glass

The construction combines different materials according to the function of each component:

• Transparent area: glass.
• Frame: treated steel sheet.
• Handle: polyamide.

This combination provides visibility of the interior, structural strength, and a suitable closing solution for a professional distribution panel.

White RAL 9003 finish

The door frame has a white RAL 9003 finish, in line with the PrismaSeT G range design.

• Color: white.
• Color reference: RAL 9003.
• Finish: matte.
• Texture: textured.

The surface treatment specified by Schneider Electric combines electrophoresis and hot-cured epoxy-polyester powder coating, designed to protect the metal parts and provide a uniform finish.

Compatible with wall-mounted enclosures and extensions

Schneider Electric specifies the LVS08135 for:

• PrismaSeT G wall-mounted cubicles 600 mm wide.
• PrismaSeT G extension enclosures 600 mm wide.

In the case of cabinet extensions, the corresponding combination elements provided for by the PrismaSeT G system must be used.

IEC 61439 standards

The door is integrated into the PrismaSeT G system designed for the construction of low-voltage distribution assemblies in accordance with the applicable standards of the IEC 61439 series.

• IEC 61439-1: general rules for low-voltage switchgear and controlgear assemblies.
• IEC 61439-2: power switchgear and controlgear assemblies.
• EN/IEC 62262: IK impact resistance classification.

The final performance of the panel depends on all components being selected and assembled in accordance with Schneider Electric instructions.

Applications of the PrismaSeT G LVS08135 door

The LVS08135 can be used in PrismaSeT G distribution panels intended for different professional environments:

• Commercial buildings.
• Offices.
• Industrial installations.
• Logistics centers.
• Technical rooms.
• Infrastructure.
• Main low-voltage switchboards.
• Secondary distribution boards.
• Installations where equipment must be visible without opening the door.

Technical characteristics of the Schneider Electric LVS08135

• Brand: Schneider Electric.
• Reference: LVS08135.
• Range: PrismaSeT.
• Family: PrismaSeT G.
• Product type: transparent door for electrical enclosure.
• Compatibility: PrismaSeT G enclosures.
• Compatible enclosure width: 600 mm.
• Number of vertical modules: 15.
• Vertical module height: 50 mm.
• Door type: transparent.
• Opening direction: reversible.
• Opening angle: 130°.
• Number of locks: 2.
• Lock included: yes.
• Key: 405.
• Handle included: yes.
• Hinges included: 2.
• Height: 780 mm.
• Width: 600 mm.
• Depth: 36 mm.
• Net weight: approximately 5.52 kg.
• Transparent material: glass.
• Frame material: treated steel sheet.
• Handle material: polyamide.
• Color: white RAL 9003.
• Finish: matte and textured.
• Protective treatment: electrophoresis and hot-cured epoxy-polyester powder coating.
• Protection rating with door: IP40.
• Rating without door: IP30.
• With door and canopy: IP41.
• With door, canopy, and IP43 gasket: IP43.
• Impact resistance: IK08.
• Quantity: 1 unit per set.
• Main standards: IEC 61439-1 and IEC 61439-2.
• EAN: 3606481879103.

Transparent door for inspection and panel protection

The Schneider Electric PrismaSeT G LVS08135 allows a 600 mm wide enclosure to be closed while keeping the equipment inside visible. Its configuration for 15 vertical modules of 50 mm, reversible 130° opening, 405-key lock, and IK08 resistance offers a solution especially suited to professional electrical distribution panels.

Once correctly installed on the compatible enclosure, it allows IP40 to be achieved, with the protection level of the assembly able to be increased using the PrismaSeT G accessories provided by Schneider Electric.

Important: the LVS08135 is a door/accessory for the PrismaSeT G system and not a complete electrical panel. The 15 modules indicated are vertical modules of 50 mm, not 18 mm DIN modules. The final IP rating depends on the enclosure and the complete installed configuration.
