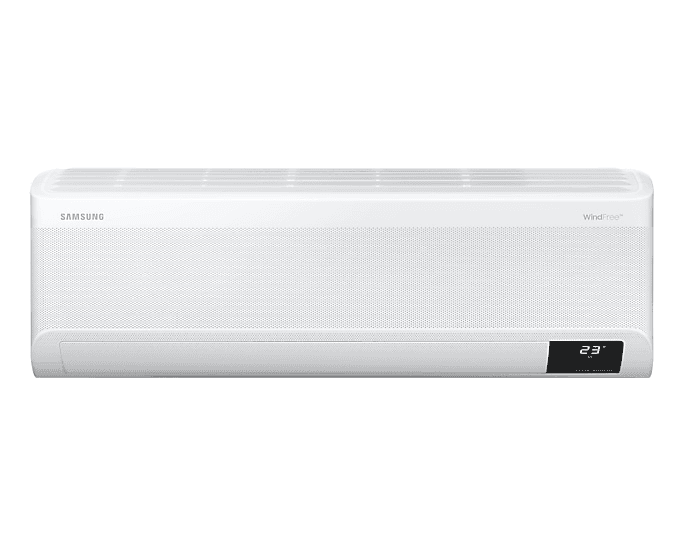

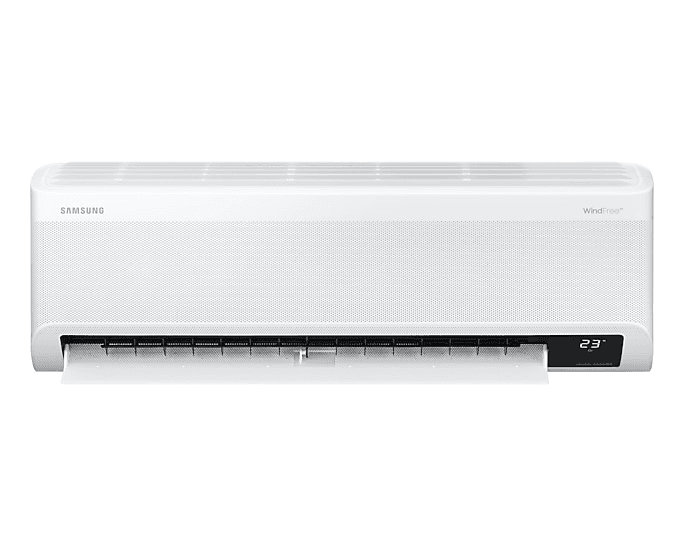

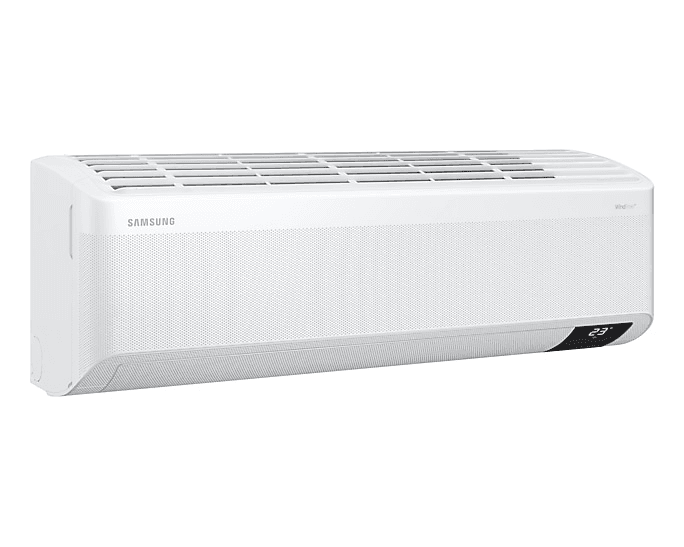

Samsung TDM Plus WindFree Deluxe 5.6 kW Split Air-to-Water Heat Pump Indoor Unit

The Samsung TDM Plus WindFree Deluxe AE056TNXDEH/EU indoor unit is a wall-mounted split designed to integrate into Samsung EHS TDM Plus air-to-water heat pump systems. It offers a rated capacity of 5.6 kW in cooling and 6.3 kW in heating and combines air-to-air climate control with technologies designed to improve comfort, such as WindFree™, Auto Clean and Easy Filter Plus.

Thanks to WindFree™ technology, the unit distributes conditioned air gently and evenly through thousands of micro-holes located on the front panel, reducing the sensation of direct drafts. This feature, together with a sound pressure level of only 29 dB(A) in WindFree™ mode, makes this indoor unit an especially suitable solution for homes and spaces where high thermal and acoustic comfort is desired.

Samsung WindFree™ Technology

The main feature of the Samsung AE056TNXDEH/EU is its WindFree™ cooling system. Instead of continuously blowing a direct stream of air into the room, the unit can distribute cool air through thousands of small holes spread across the front panel.

Samsung describes this operation as a “still air” condition, designed to maintain a comfortable temperature while avoiding the unpleasant sensation caused by direct cold drafts.

This technology is especially interesting in bedrooms, living rooms, offices and other spaces where the user spends long periods of time and is looking for gentler air conditioning.

5.6 kW Cooling and 6.3 kW Heating

The Samsung TDM Plus WindFree Deluxe indoor unit has a rated cooling capacity of 5.6 kW and a rated heating capacity of 6.3 kW.

Its cooling and heating operation allows it to be used all year round when combined with a compatible Samsung EHS TDM Plus outdoor unit. The effective output and final energy performance will depend on the outdoor unit, system configuration, environmental conditions and installation characteristics.

Integration in Samsung EHS TDM Plus Systems

The Samsung EHS TDM Plus system is designed to combine air-to-air and air-to-water applications within a single air-to-water heat pump solution. This makes it possible to integrate direct expansion indoor units, such as the AE056TNXDEH/EU, with other components intended for hydronic heating and domestic hot water production.

The WindFree Deluxe unit works as an air-to-air indoor terminal and must be connected to a compatible TDM Plus outdoor unit. In this way, a single installation can provide direct air conditioning together with other thermal applications typical of the heat pump system.

Auto Clean Function

The Auto Clean function is designed to help keep the heat exchanger clean after the unit is switched off.

Once operation has ended, the unit can automatically carry out a three-stage drying process for the heat exchanger. This reduces residual moisture inside the unit, helping to limit the build-up of bacteria and the appearance of odors.

The function can be activated or deactivated from the corresponding control.

Easy Filter Plus for Easier Maintenance

The Samsung AE056TNXDEH/EU incorporates the Easy Filter Plus filter, located on the upper outer section of the indoor unit.

This position makes it easy to remove and clean without having to fully dismantle the front cover. Its mesh is designed to capture dust particles and help keep the heat exchanger clean.

Regular filter maintenance helps maintain proper airflow and good operating conditions for the unit.

Quiet Operation

The unit has been designed to provide air conditioning with low noise levels. Samsung specifies the following sound pressure values:

• High speed: 40 dB(A).
• Medium speed: 37 dB(A).
• Low speed: 34 dB(A).
• WindFree™ mode: 29 dB(A).

The declared sound power level is 58 dB(A).

Perceived noise levels may vary depending on installation conditions, unit position and room characteristics.

Adjustable Airflow

The Samsung AE056TNXDEH/EU includes a Crossflow fan designed to operate at different airflow speeds.

• High airflow: 15.7 m³/min.
• Medium airflow: 13.8 m³/min.
• Low airflow: 12.0 m³/min.

Airflow regulation allows the unit to be adapted to the cooling and comfort needs of each moment.

Samsung NASA Communication Protocol

The unit is equipped with Samsung NASA communication protocol, used for communication between the different components of the climate control system.

This integration allows the split unit to be incorporated into a compatible Samsung EHS TDM Plus configuration and facilitates communication with the control elements provided by the manufacturer.

Design Intended to Simplify Installation and Maintenance

Samsung has developed this WindFree Deluxe range with special attention to installation and maintenance tasks.

The unit uses a lower cover with a hook system that makes opening and closing easier during technical interventions. In addition, the mounting bracket is designed to simplify positioning and adjustment of the unit on the wall.

External access to the Easy Filter Plus makes routine filter cleaning simple.

Refrigerant Connections

The Samsung AE056TNXDEH/EU uses the following refrigerant connection sizes:

• Liquid pipe: 6.35 mm (1/4").
• Gas pipe: 12.7 mm (1/2").
• Drain connection: hose with 18 mm inner diameter.

The unit is designed for systems that use R410A refrigerant.

Required EEV Expansion Valve Kit

The electronic expansion valve (EEV) is not integrated into the indoor unit. Samsung indicates that the corresponding EEV kit must be used within the TDM Plus installation.

The reference and configuration of the kit will depend on the number of indoor units and the system design, so this component must be selected according to Samsung’s tables and technical documentation.

Samsung AE056TNXDEH/EU Technical Specifications

• Brand: Samsung.
• Reference: AE056TNXDEH/EU.
• Range: EHS TDM Plus WindFree™ Deluxe.
• Type: wall-mounted indoor unit.
• Mode: heat pump.
• Rated cooling capacity: 5.6 kW.
• Rated heating capacity: 6.3 kW.
• Power supply: single-phase, 220-240 V, 50 Hz.
• Rated current in cooling: 0.35 A.
• Rated current in heating: 0.35 A.
• Rated electrical input of indoor unit in cooling: 0.052 kW.
• Rated electrical input of indoor unit in heating: 0.052 kW.
• Fan type: Crossflow.
• High / medium / low airflow: 15.7 / 13.8 / 12.0 m³/min.
• High / medium / low / WindFree™ sound pressure: 40 / 37 / 34 / 29 dB(A).
• Sound power: 58 dB(A).
• Refrigerant: R410A.
• Electronic expansion valve: not included; compatible EEV kit required.
• Liquid connection: 6.35 mm (1/4").
• Gas connection: 12.7 mm (1/2").
• Drain connection: 18 mm inner diameter.
• Net dimensions (W x H x D): 1,055 x 299 x 215 mm.
• Net weight: 11.5 kg.
• WindFree™ technology: yes.
• Auto Clean: yes.
• Easy Filter Plus: yes.
• Communication protocol: Samsung NASA.

Wall-Mounted Unit for Comfortable Climate Control All Year Round

The Samsung AE056TNXDEH/EU 5.6 kW combines the integration possibilities of the EHS TDM Plus heat pump system with the comfort characteristic of WindFree™ technology.

Its 5.6 kW cooling and 6.3 kW heating capacity, operation from 29 dB(A), Easy Filter Plus filter and Auto Clean function provide a wall-mounted solution ready to condition rooms with a high level of comfort.

Important: this reference corresponds exclusively to the indoor unit. To obtain an operational climate control system, it must be combined with a compatible Samsung EHS TDM Plus outdoor unit and the corresponding EEV kit, as well as the installation and control elements required for each project.
