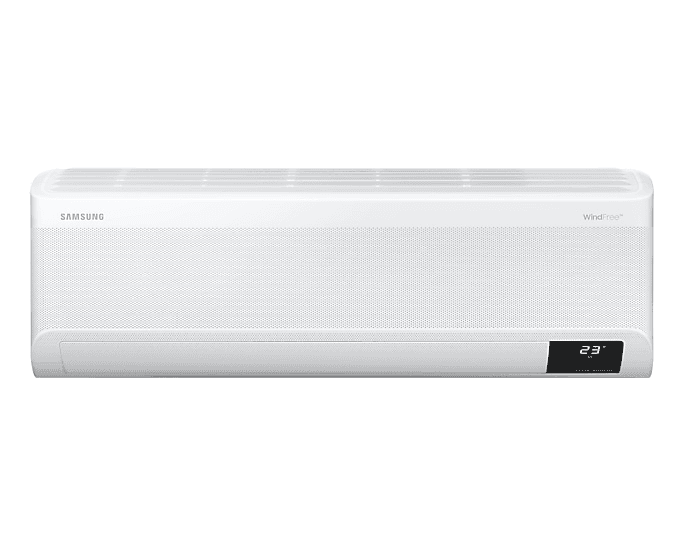

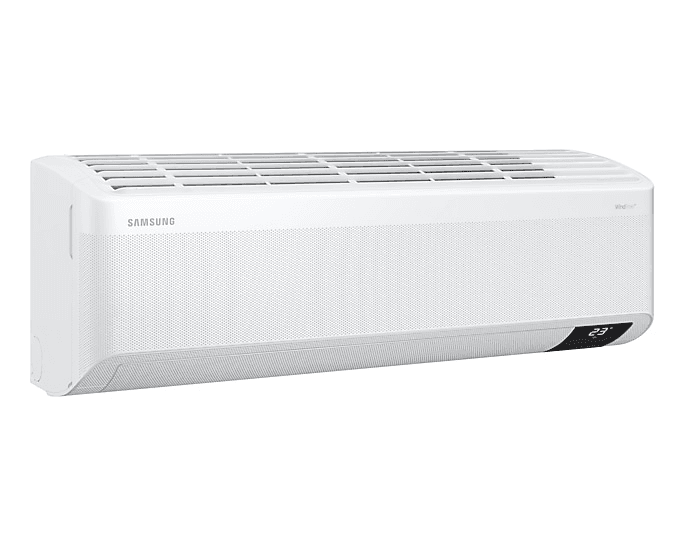

Samsung TDM Plus WindFree Deluxe 3.6 kW Indoor Split Unit Heat Pump

The Samsung TDM Plus WindFree Deluxe AE036TNXDEH/EU indoor unit is a wall-mounted split designed to integrate into Samsung EHS TDM Plus air-to-water heat pump systems, combining air-to-air air conditioning with the versatility of a solution capable of working together with the system’s air-to-water functions. It offers a nominal capacity of 3.6 kW in cooling and 4.0 kW in heating, incorporating WindFree™ technology to maintain a comfortable temperature while reducing the sensation of direct air drafts.

This model belongs to the TDM Plus WindFree™ Deluxe range and is especially suitable for installations where room conditioning is required through a wall-mounted unit within an integrated EHS system. Its technology, different operating modes and low noise level in WindFree™ mode make this unit an ideal solution for homes and other spaces where thermal and acoustic comfort are important.

WindFree™ technology for more comfortable air conditioning

Samsung WindFree™ technology distributes conditioned air gently and evenly through thousands of micro-holes located on the front panel of the unit. This reduces the sensation of direct cold air drafts and creates a calm air environment, especially pleasant once the room has reached the selected temperature.

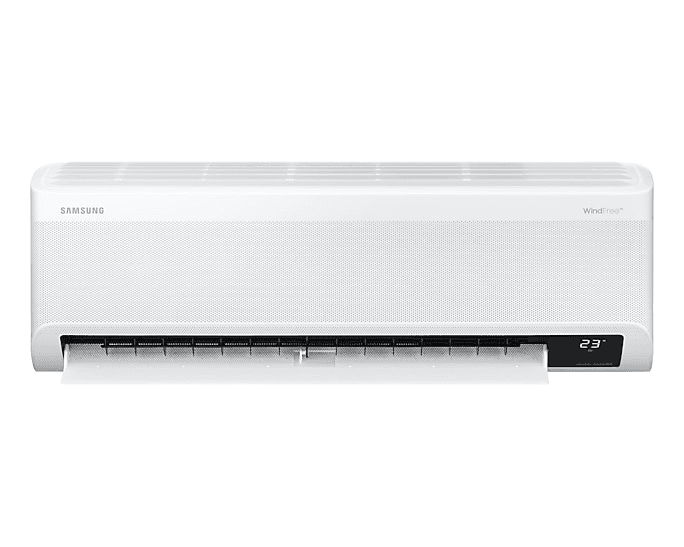

The system can perform two-stage cooling. It initially uses fast cooling mode to reach the desired temperature more quickly and then switches to WindFree™ operation, closing the main louver and distributing air through the micro-holes.

3.6 kW cooling and 4.0 kW heating capacity

The Samsung AE036TNXDEH/EU provides a nominal cooling capacity of 3.6 kW and a nominal heating capacity of 4.0 kW. These performance levels allow the unit to be used all year round, both for cooling and for heating through the compatible heat pump system.

The capacities indicated by Samsung are obtained under nominal test conditions and may vary depending on the system configuration, refrigerant pipe length and indoor and outdoor temperature conditions.

Integration in Samsung EHS TDM Plus systems

The Samsung TDM Plus system is designed as a combined air-to-water and air-to-air solution. Depending on the installed configuration, it allows air conditioning to be integrated through indoor units such as this WindFree™ Deluxe split together with hydraulic functions intended for heating, cooling and domestic hot water production through the corresponding system components.

The AE036TNXDEH/EU unit acts as an air-to-air indoor terminal and must be installed together with a compatible Samsung EHS TDM Plus outdoor unit and the necessary accessories for the system configuration.

Heat exchanger self-cleaning

The Auto Clean or self-cleaning function helps keep the inside of the unit clean once operation has stopped. The system automatically dries the heat exchanger, helping reduce residual moisture that can encourage odours and build-up inside the unit.

This function simplifies routine maintenance and helps maintain proper operating conditions over time.

Easy Filter Plus for easy access

The unit includes the Easy Filter Plus filter, located in an accessible position at the top of the unit. Its design makes it easy to remove, clean and reinstall without complex disassembly.

Regular filter maintenance helps maintain proper airflow and preserve the performance of the air conditioning system.

Automatic air distribution

The Samsung TDM Plus WindFree Deluxe AE036TNXDEH/EU features automatic vertical and horizontal air direction control. This allows air to be distributed across different areas of the room and the airflow direction to be adjusted according to comfort needs.

The Cross Flow fan offers three main airflow levels, reaching 10.3 / 9.1 / 8.3 m³/min at high, medium and low speed, respectively.

Quiet operation

Acoustic comfort is another highlight of this indoor unit. The sound pressure specified by Samsung is 40 / 36 / 34 dB(A) at high, medium and low speeds, while in WindFree™ mode it can be reduced to 26 dB(A).

The declared sound power is 56 dB(A). Actual perceived levels may vary depending on installation conditions, the acoustic characteristics of the room and the selected operating mode.

Operating modes

The unit includes different functions designed to adapt air conditioning to each time of day and user needs.

• WindFree™ Cooling: distributes air through the micro-holes in the panel to reduce direct drafts.
• 2 Step Cooling: combines fast cooling and WindFree™ operation to reach the temperature and then maintain comfort.
• Fast Cool: allows the room to be cooled quickly.
• Good Sleep: adjusts operation to improve comfort during rest hours.
• Eco: mode designed to optimize unit operation.
• Dehumidification: helps reduce indoor humidity.
• Fan mode: allows air circulation without cooling or heating.
• Quiet mode: reduces operating noise.
• Auto changeover: automatically adapts the operating mode when the system configuration allows it.
• Auto restart: restores operation after a power outage.

Control via Samsung SmartThings

The unit is compatible with Samsung SmartThings using the MIM-H04EN WiFi kit available as an accessory. With a compatible setup, it is possible to control and monitor the system from a mobile device, including functions such as on/off, climate mode selection and scheduling.

Samsung also includes energy monitoring and automation functions within the SmartThings ecosystem. To use these features, WiFi connection, a Samsung SmartThings account and the corresponding connectivity kit are required.

Technical data for the Samsung AE036TNXDEH/EU

• Brand: Samsung.
• Reference: AE036TNXDEH/EU.
• Range: EHS TDM Plus WindFree™ Deluxe.
• Type: wall-mounted air-to-air indoor unit.
• Nominal cooling capacity: 3.6 kW.
• Nominal heating capacity: 4.0 kW.
• Power supply: single-phase, 220-240 V, 50 Hz.
• Nominal electrical consumption of the indoor unit in cooling: 37 W.
• Nominal electrical consumption of the indoor unit in heating: 37 W.
• Nominal current: 0.25 A.
• Fan type: Cross Flow.
• Fan motor: BLDC.
• Airflow high / medium / low: 10.3 / 9.1 / 8.3 m³/min.
• Sound pressure high / medium / low / WindFree™: 40 / 36 / 34 / 26 dB(A).
• Sound power: 56 dB(A).
• Refrigerant: R410A.
• Liquid refrigerant connection: 6.35 mm (1/4").
• Gas refrigerant connection: 12.7 mm (1/2").
• Net dimensions (W x H x D): 820 x 299 x 215 mm.
• Net weight: 9 kg.
• Vertical air direction: automatic.
• Horizontal air direction: automatic.
• Filter: Easy Filter Plus.
• Self-cleaning: yes.
• Indoor temperature display: yes.
• Display control and acoustic signal: configurable.

Accessories and installation requirements

Samsung specifies that the EEV electronic expansion valve is not included with this indoor unit. To properly control refrigerant flow in a TDM Plus WindFree™ Deluxe installation, the corresponding EEV kit must be installed, purchased separately and selected according to the system configuration.

Samsung documentation also includes different control and management elements, including the AR-EH03E wireless remote control, the MWR-SH11N touch controller, the MWR-WE13N wired controller, the DMS2.5 MIM-D01AN management system and the MIM-H04EN WiFi kit. The inclusion or need for each accessory must be checked according to the specific installation configuration.

A wall-mounted unit designed for TDM Plus system comfort

The Samsung AE036TNXDEH/EU combines a 3.6 kW cooling capacity and 4.0 kW heating capacity with Samsung’s main comfort technologies, such as WindFree™, Auto Clean and Easy Filter Plus. Its quiet operation, automatic air distribution and multiple operating modes allow the room’s air conditioning to be adapted to different needs.

Thanks to its integration with the EHS TDM Plus platform, it is especially interesting for installations seeking to combine direct air conditioning with other Samsung air-to-water heat pump solutions in a single system. To ensure proper operation, it must be used with a compatible TDM Plus outdoor unit and with the hydraulic, refrigerant and control accessories required by the project.
