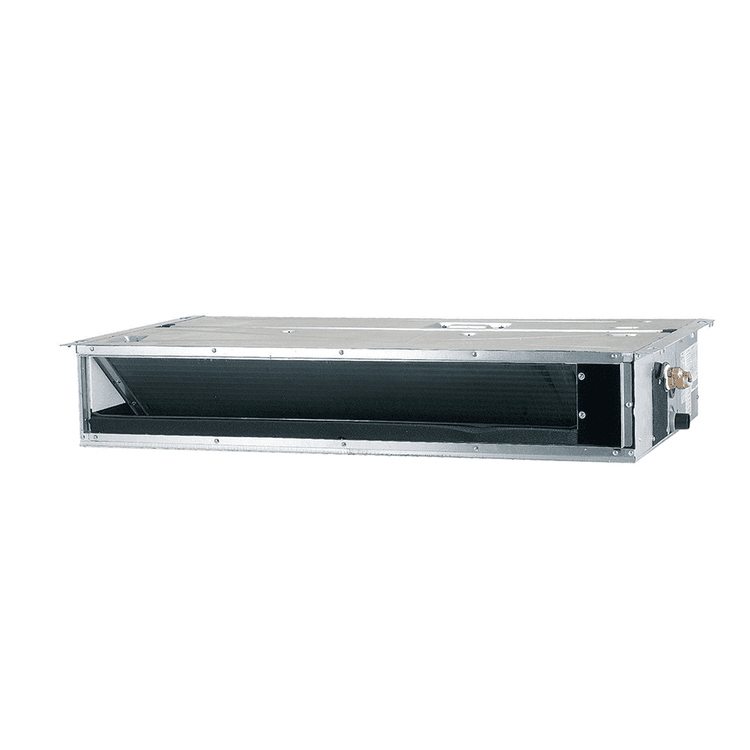

Samsung EHS TDM Plus 9 kW Ducted Indoor Unit for Aerothermal

The Samsung EHS TDM Plus AE090ANMPEH/EU ducted indoor unit is a medium-static-pressure HVAC unit designed to integrate into Samsung TDM Plus air-to-water heat pump systems. It offers a nominal capacity of 9.0 kW in cooling and 10.0 kW in heating, providing air-based climate control through a discreet installation, with the unit hidden in the false ceiling and air distributed through ducts and grilles.

This model stands out for its high capacity, its adjustable external static pressure up to 147.1 Pa, the Auto ESP system, the possibility of configuring air intake from the bottom or rear, and the built-in condensate drain pump. These features provide flexibility both during the design phase and during the installation of residential and professional HVAC systems.

9.0 kW cooling and 10.0 kW heating output

The Samsung AE090ANMPEH/EU provides a nominal cooling capacity of 9.0 kW and a nominal heating capacity of 10.0 kW. Its high output makes it suitable for installations that require climate control in larger spaces through centralized air distribution.

As an indoor unit, it must operate together with a compatible Samsung EHS TDM Plus outdoor unit. The effective capacity, performance, and energy efficiency of the system will depend on the selected combination, operating conditions, and installation design.

Fully integrated ducted installation

The ducted format allows the indoor unit to be installed above a false ceiling, keeping it out of sight. The conditioned air is distributed through a network of ducts and grilles, offering a solution especially suitable when a clean aesthetic is desired in different rooms.

The unit has dimensions of 1,200 x 250 x 700 mm, with a height of only 250 mm that facilitates integration into technical spaces and false ceilings.

Auto ESP to automatically adjust pressure and airflow

Samsung's Auto ESP function automatically optimizes static pressure and airflow volume according to the characteristics of the duct network.

This technology simplifies commissioning and helps maintain proper air distribution without relying exclusively on manual adjustments. Samsung indicates that Auto ESP optimizes air volume and pressure to promote uniform operation and reduce noise associated with incorrect configuration.

The external static pressure can be adjusted within a range of 0 to 147.1 Pa, with a standard value of approximately 39.2 Pa, providing flexibility to adapt to different duct lengths and configurations.

Bottom or rear air intake

The Samsung EHS TDM Plus indoor unit allows the air intake to be configured from the bottom or from the rear. This dual option makes it easier to adapt the unit to the available space and to the return-air layout planned for each project.

This intake flexibility is especially useful in false-ceiling installations where the architectural layout may limit the position of the ducts or return grilles.

Airflow of up to 27 m³/min

The AE090ANMPEH/EU incorporates a Sirocco-type fan with different operating speeds to adapt airflow to climate control needs.

• High airflow: 27 m³/min.
• Medium airflow: 22 m³/min.
• Low airflow: 16 m³/min.
• Maximum equivalent airflow: approximately 1,620 m³/h.

The combination of high airflow with available pressure of up to 147.1 Pa makes it suitable for duct networks adapted to medium-static-pressure HVAC installations.

Operation with controlled noise levels

The indoor unit is designed to deliver comfortable operation even with the output required by larger installations. According to the product technical sheet, it has the following sound pressure levels depending on fan speed:

• High speed: 37 dB(A).
• Medium speed: 32 dB(A).
• Low speed: 27 dB(A).
• Sound power level: 58 dB(A).

The acoustic level ultimately perceived in each room will also depend on the duct design, insulation, grilles used, air speed, and installation conditions.

Integrated condensate pump

The condensate drain pump is included as standard in the Samsung AE090ANMPEH/EU, making it easier to remove the water generated during cooling operation.

This feature provides greater flexibility when designing the drainage route, especially when condensate cannot be drained solely by gravity.

The unit has a VP25 drain connection.

Included electronic expansion valve

The unit comes factory-fitted with an EEV electronic expansion valve, responsible for controlling refrigerant flow within the refrigeration system.

The Samsung AE090ANMPEH/EU operates with R410A refrigerant within compatible EHS TDM Plus configurations.

Refrigerant connections

The refrigerant connections for this unit are:

• Liquid pipe: 9.52 mm (3/8").
• Gas pipe: 15.88 mm (5/8").
• Drain pipe: VP25.

The pipe dimensions and all other installation conditions must comply with Samsung's technical instructions for the specific combination of indoor and outdoor unit installed.

Optional SPi air treatment kit

Samsung offers an optional SPi plasma ionizer kit for this range of ducted units. The system generates active ions and is designed to complement the air treatment of the air passing through the unit.

The SPi kit is an optional accessory and is not included as standard with the unit.

Integration with the Samsung EHS TDM Plus system

Samsung EHS TDM Plus technology makes it possible to combine air-to-air climate control functions and the specific applications of a compatible air-to-water heat pump system within a single solution.

The AE090ANMPEH/EU works as a ducted direct-expansion indoor unit, providing cooling and heating through air. To operate, it must be connected to a suitable TDM Plus outdoor unit within a Samsung-approved configuration.

This architecture makes it possible to develop comprehensive climate control solutions in which air indoor units can coexist with other EHS system elements intended for the building's thermal needs.

Samsung control options

Samsung offers different control accessories compatible with the EHS TDM Plus range, allowing the system operation to be adapted to the needs of each installation.

• MWR-WG01KN: advanced wired remote controller.
• MWR-SH11N: touch wired remote controller.
• AR-EH03E: wireless remote controller, used together with the corresponding receiver in ducted installations.
• AR-CH01E: SolarCell wireless remote controller, depending on compatible configuration.
• MRK-A10N: receiver kit for certain wireless controls in ducted models.
• MIM-H04EN: WiFi kit for compatible system configurations.

The required accessories will depend on the chosen control type and the complete installation configuration, so they must be selected according to Samsung's technical documentation.

Technical features of the Samsung AE090ANMPEH/EU

• Brand: Samsung.
• Reference: AE090ANMPEH/EU.
• Range: EHS TDM Plus.
• Type: medium-static-pressure ducted indoor unit.
• Mode: heat pump.
• Nominal cooling capacity: 9.0 kW.
• Nominal heating capacity: 10.0 kW.
• Power supply: single-phase, 220-240 V, 50 Hz.
• Rated current: 1.20 A.
• Indoor unit power consumption in cooling: 0.135 kW.
• Indoor unit power consumption in heating: 0.135 kW.
• Fan type: Sirocco.
• High / medium / low airflow: 27 / 22 / 16 m³/min.
• Maximum airflow: approximately 1,620 m³/h.
• Minimum / standard / maximum external static pressure: 0 / 39.23 / 147.10 Pa.
• High / medium / low sound pressure: 37 / 32 / 27 dB(A).
• Sound power: 58 dB(A).
• Refrigerant: R410A.
• Refrigerant control: included electronic expansion valve EEV.
• Liquid refrigerant connection: 9.52 mm (3/8").
• Gas refrigerant connection: 15.88 mm (5/8").
• Drain connection: VP25.
• Drain pump: integrated.
• Net dimensions (W x H x D): 1,200 x 250 x 700 mm.
• Net weight: 35.4 kg.
• Air intake: bottom or rear.
• Automatic pressure adjustment: Auto ESP.
• SPi air treatment kit: optional.

High-capacity ducted unit for Samsung heat pump systems

The Samsung EHS TDM Plus AE090ANMPEH/EU 9 kW is a solution especially suited to installations seeking powerful, discreet climate control through ducting. Its 9.0 kW cooling and 10.0 kW heating capacity is combined with a maximum airflow of 1,620 m³/h and static pressure of up to 147.1 Pa to adapt to air distribution networks with different characteristics.

Features such as Auto ESP, bottom or rear air intake, the electronic expansion valve, and the integrated condensate pump simplify installation and make it easier to adapt to residential and professional projects.

Important: this product refers only to the ducted indoor unit. To have an operational system, it must be combined with a compatible Samsung EHS TDM Plus outdoor unit and with the ducts, grilles, controls, and other elements required for each installation.
