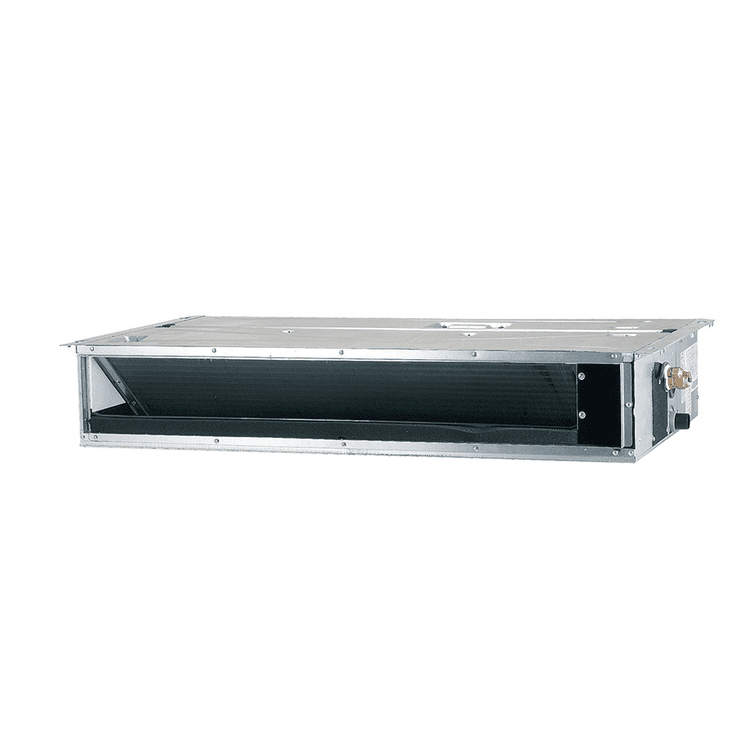

Samsung EHS TDM Plus 5.6 kW Ducted Indoor Aerothermal Unit

The Samsung EHS TDM Plus AE056BNMPEH/EU ducted indoor unit is designed to heat and cool homes and professional spaces with a concealed installation in a false ceiling. It offers a nominal capacity of 5.6 kW in cooling and 6.3 kW in heating and is part of the Samsung EHS TDM Plus range, allowing air-to-air climate control to be integrated into a compatible air source heat pump solution.

Its medium static pressure ducted format makes it easy to distribute air to different rooms through a network of ducts and grilles. It also includes features such as Auto ESP, configurable air intake, an electronic expansion valve and an integrated condensate drain pump, simplifying system design and installation.

Medium static pressure ducted unit for discreet installation

The Samsung AE056BNMPEH/EU is designed to be installed concealed above a false ceiling, leaving only the supply and return grilles or diffusers visible. This setup helps maintain a clean look in the room while distributing conditioned air centrally.

The unit operates with an adjustable external static pressure from 0 to 147 Pa, providing flexibility to suit different duct configurations. Its standard static pressure is 29.4 Pa.

5.6 kW cooling and 6.3 kW heating

This model delivers a nominal cooling output of 5.6 kW and 6.3 kW heating output, providing climate control both during warm months and in winter when integrated with a compatible Samsung EHS TDM Plus outdoor unit.

The final capacity and energy efficiency of the system depend on the outdoor unit used, outdoor conditions, the installation setup and the characteristics of the building.

Auto ESP automatic adjustment

One of the main features of this Samsung ducted unit is the Auto ESP function. This system automatically adjusts airflow volume and pressure to match the characteristics of the duct installation.

Static pressure control helps achieve more even air distribution and makes system commissioning easier, avoiding unnecessary manual adjustments. External static pressure can also be configured using a compatible controller.

Bottom or rear air intake

The Samsung EHS TDM Plus AE056BNMPEH/EU indoor unit allows air intake to be configured from the bottom or from the rear. This dual option gives installers greater flexibility when adapting the unit to the available space in the false ceiling.

This feature is especially useful in renovations or installations where available height and duct layout affect the position of the unit.

Adjustable airflow

The Sirocco-type fan provides different airflow levels to adapt operation to the climate control needs of the installation.

• High airflow: 16.0 m³/min.
• Medium airflow: 13.5 m³/min.
• Low airflow: 9.0 m³/min.

This adjustment makes it possible to combine cooling/heating capacity, air distribution and acoustic comfort according to the needs of each installation.

Quiet operation

The Samsung AE056BNMPEH/EU is designed to operate with low noise levels, a particularly important feature when installing a ducted unit near bedrooms, living rooms, offices or other regularly used areas.

• Sound pressure at high speed: 32 dB(A).
• Sound pressure at medium speed: 29 dB(A).
• Sound pressure at low speed: 25 dB(A).
• Sound power: 57 dB(A).

The perceived noise level will also depend on the duct design, grilles, acoustic insulation and installation conditions.

Integrated electronic expansion valve

This model includes an EEV electronic expansion valve designed to regulate refrigerant flow within the refrigeration circuit. Its integration into the unit itself makes installation within the Samsung TDM Plus system easier.

The unit uses R410A refrigerant and has refrigerant connections of 6.35 mm for the liquid line and 12.7 mm for the gas line.

Built-in condensate drain pump

The condensate drain pump is integrated into the indoor unit. This feature makes it easier to remove the water produced during cooling operation and provides greater freedom when designing the drain route.

The drain connection used by the unit is VP25 type.

Filter and optional air quality improvement

The unit includes a filter to help retain particles present in the air circulating through the system. Samsung also offers the possibility of installing an optional SPi plasma ionizer kit to complement indoor air treatment.

This accessory generates active ions intended to help reduce certain pollutants present in the environment. The SPi kit is not part of the standard equipment and must be selected according to the needs of the project.

Optional WiFi control

The EHS TDM Plus range supports additional control options to adapt the installation to different needs. Samsung offers the MIM-H04EN WiFi kit as an accessory for compatible configurations, allowing connected control functions to be integrated into the brand's climate control ecosystem.

There are also various Samsung wired and wireless controls available as accessories. Their compatibility and the elements required for installation should be checked according to the complete system configuration.

Technical features of the Samsung AE056BNMPEH/EU

• Brand: Samsung.
• Reference: AE056BNMPEH/EU.
• Range: EHS TDM Plus.
• Type: medium static pressure ducted indoor unit.
• Operation: heat pump.
• Nominal cooling capacity: 5.6 kW.
• Nominal heating capacity: 6.3 kW.
• Power supply: single-phase, 220-240 V, 50 Hz.
• Nominal current in cooling: 0.6 A.
• Nominal current in heating: 0.6 A.
• Nominal electrical consumption of the indoor unit in cooling: 0.07 kW.
• Nominal electrical consumption of the indoor unit in heating: 0.07 kW.
• Fan type: Sirocco.
• Airflow high / medium / low: 16.0 / 13.5 / 9.0 m³/min.
• External static pressure minimum / standard / maximum: 0 / 29.4 / 147 Pa.
• Sound pressure high / medium / low: 32 / 29 / 25 dB(A).
• Sound power: 57 dB(A).
• Refrigerant: R410A.
• Refrigerant control: integrated EEV electronic expansion valve.
• Liquid connection: 6.35 mm (1/4").
• Gas connection: 12.7 mm (1/2").
• Drain connection: VP25.
• Condensate drain pump: integrated.
• Net dimensions (W x H x D): 850 x 250 x 700 mm.
• Net weight: 27.9 kg.
• Air intake: configurable from the bottom or rear.
• Pressure regulation: Auto ESP.

Integration with Samsung EHS TDM Plus

Samsung EHS TDM Plus technology is designed to combine direct expansion climate control with the functions of an air-to-water heat pump system. In this way, a compatible installation can use air indoor units such as this ducted model together with other system components for heating, cooling and domestic hot water production.

The AE056BNMPEH/EU acts as an air conditioning indoor unit and must work with a compatible Samsung EHS TDM Plus outdoor unit. The final configuration must be sized according to the building's thermal needs and the combinations supported by Samsung.

A versatile ducted solution for Samsung TDM Plus systems

The Samsung AE056BNMPEH/EU 5.6 kW indoor ducted unit combines a design intended to be hidden in a false ceiling with features aimed at simplifying installation and improving comfort, such as Auto ESP automatic adjustment, bottom or rear intake, integrated condensate pump and built-in electronic expansion valve.

Its 5.6 kW cooling capacity and 6.3 kW heating capacity, together with adjustable static pressure up to 147 Pa, make it a particularly suitable solution for ducted climate control projects integrated into Samsung EHS TDM Plus air source heat pump systems.

Important: this product is the ducted indoor unit. To have an operational climate control system, it must be combined with a compatible Samsung EHS TDM Plus outdoor unit and with the installation, control and air distribution elements required for each project.
